Conductor: 0.5mm2 to 2.5mm2
Insulation of conductors in accordance with EN 60228
Sheath: PVC
Product Introduction

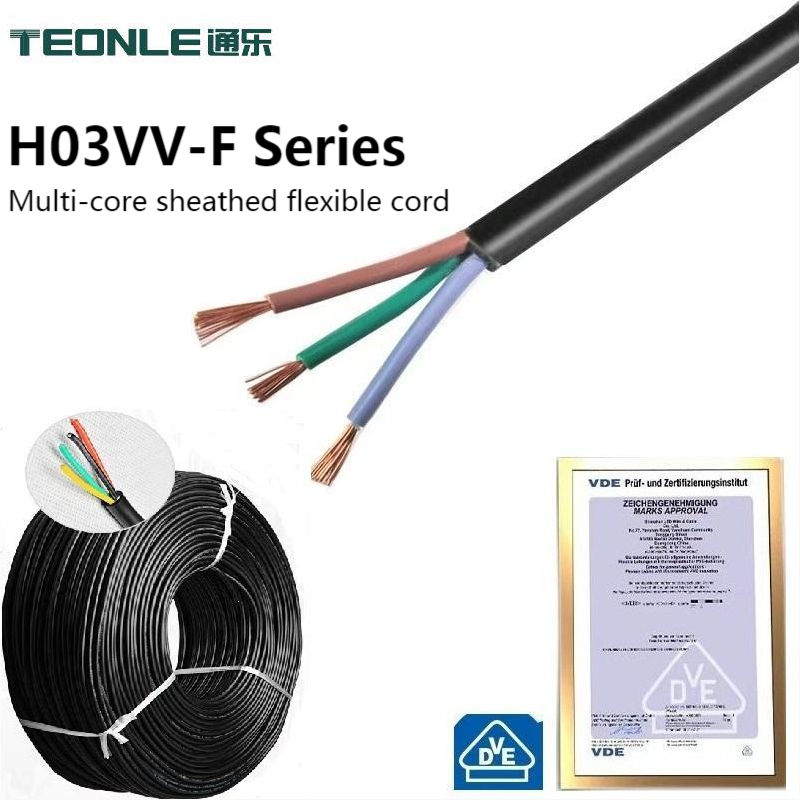

Rated voltage: h03vv-f:300/300V, h05vv-f:300/500V
Temperature limit: -20°C to +70°C
Minimum bending radius: 10 to 15 times of cable diameter
Should not be installed at temperatures lower than 0°C or higher than +40°C
Purpose
Rated voltage: h03vv-f:300/300V, h05vv-f:300/500V
Temperature limit: -20°C to +70°C
Minimum bending radius: 10 to 15 times of cable diameter
Should not be installed at temperatures lower than 0°C or higher than +40°C
Characteristic
Rated voltage: h03vv-f:300/300V, h05vv-f:300/500V
Temperature limit: -20°C to +70°C
Minimum bending radius: 10 to 15 times of cable diameter
Should not be installed at temperatures lower than 0°C or higher than +40°C
Performance
Operating voltage 300/500V
Test voltage 2000V
Dynamic bending radius 7.5 x Ø
Static bending radius 4 x Ø
The operating temperature is -5º C to +70º C
Static temperature -40º C to +70º C
