Standard: Refer to DIN VDE 0250 standard
Minimum bending radius: 8.0×D for mobile installation (cable OD)
Mobile operating temperature: -15℃~70℃ (can be customized -40℃~120℃)
Operating voltage: ≤ 0.75mm2, 300/500V
≥ 1.0 mm2, 450/750V
≥ 10 mm2, 600/1000V
Test voltage: 1500V according to DINDE 0472 Part 509
≤ 0.75mm2, 2000V, 50Hz, 5Min
≥ 1.0mm2, 3000V, 50Hz, 5Min
Product Introduction
Applicable equipment: robot equipment CNC machine tool laser CNC mechanical arm Woodworking machinery ceramic machinery steel large mechanical arm medical equipment glass cutting machine and other fast moving equipment and so on
Product model: TRVV
Number of cable cores: 1-80 cores
Cable square: 0.10-240mm2

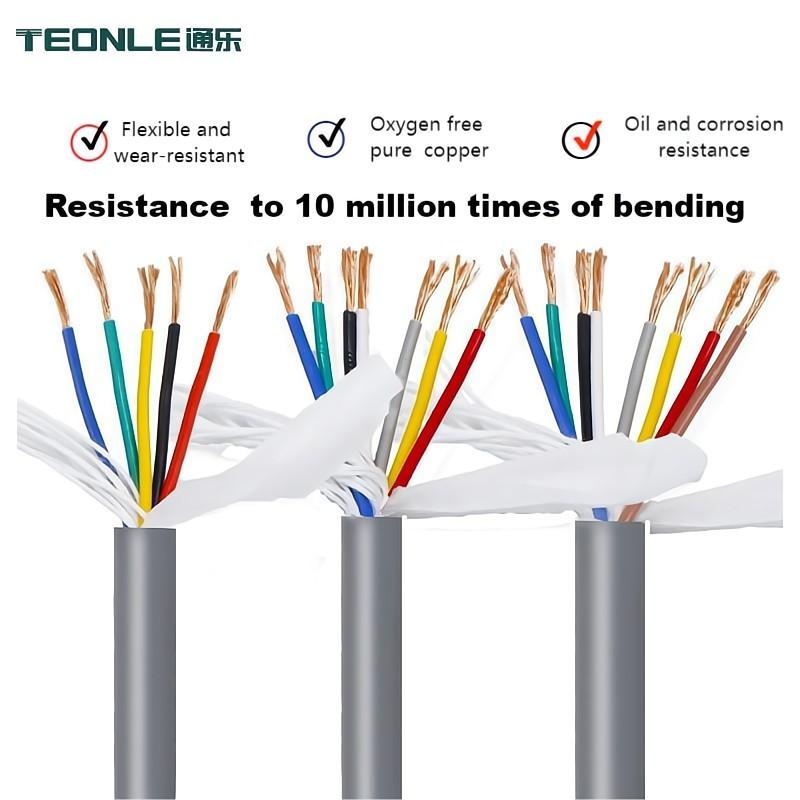

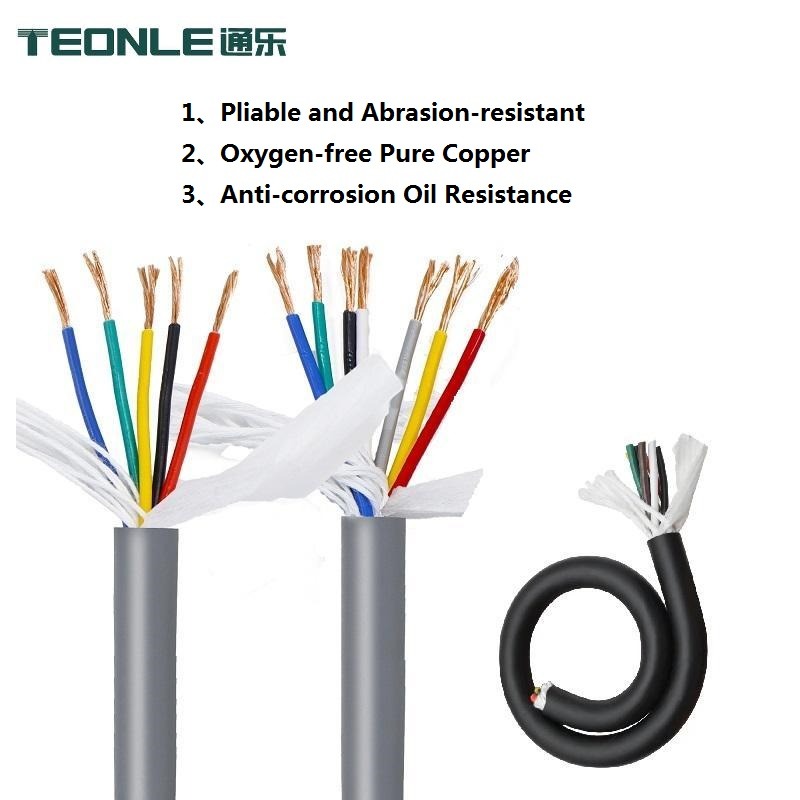

High flexible bending resistance TRVV cable product structure
Conductor: Multi-strand soft annealed oxygen free copper wire fine stranded according to VDE0295, class 6 conductor
Core wire: The core wire is twisted synthetic cable, the color of the core wire conforms to VDE 0293 non-woven material wrapped
Insulation: special high strength fatigue resistant composite nitrile PVC
Screen cover: tinned copper wire braid shield/fine oxygen free copper wire braid; The weaving density is greater than 85%
Outer sheath: imported nitrile mixed PVC/PUR
Jacket color: black and grey/can be customized according to customer's request
Technical specifications of TRVV cable with high flexibility and bending resistance
Standard: Refer to DIN VDE 0250 standard
Minimum bending radius: 8.0×D for mobile installation (cable OD)
Mobile operating temperature: -15℃~70℃ (can be customized -40℃~120℃)
Operating voltage: ≤ 0.75mm2, 300/500V
≥ 1.0 mm2, 450/750V
≥ 10 mm2, 600/1000V
Test voltage: 1500V according to DINDE 0472 Part 509
≤ 0.75mm2, 2000V, 50Hz, 5Min
≥ 1.0mm2, 3000V, 50Hz, 5Min
Purpose
Applicable equipment: robot equipment CNC machine tool laser CNC mechanical arm Woodworking machinery ceramic machinery steel large mechanical arm medical equipment glass cutting machine and other fast moving equipment and so on
Characteristic
Standard: Refer to DIN VDE 0250 standard
Minimum bending radius: 8.0×D for mobile installation (cable OD)
Mobile operating temperature: -15℃~70℃ (can be customized -40℃~120℃)
Operating voltage: ≤ 0.75mm2, 300/500V
≥ 1.0 mm2, 450/750V
≥ 10 mm2, 600/1000V
Test voltage: 1500V according to DINDE 0472 Part 509
≤ 0.75mm2, 2000V, 50Hz, 5Min
≥ 1.0mm2, 3000V, 50Hz, 5Min
Performance
Product model: TRVV
Number of cable cores: 1-80 cores
Cable square: 0.10-240mm2
High flexible bending resistance TRVV cable product structure
Conductor: Multi-strand soft annealed oxygen free copper wire fine stranded according to VDE0295, class 6 conductor
Core wire: The core wire is twisted synthetic cable, the color of the core wire conforms to VDE 0293 non-woven material wrapped
Insulation: special high strength fatigue resistant composite nitrile PVC
Screen cover: tinned copper wire braid shield/fine oxygen free copper wire braid; The weaving density is greater than 85%
Outer sheath: imported nitrile mixed PVC/PUR
Jacket color: black and grey/can be customized according to customer's request
Technical specifications of TRVV cable with high flexibility and bending resistance
