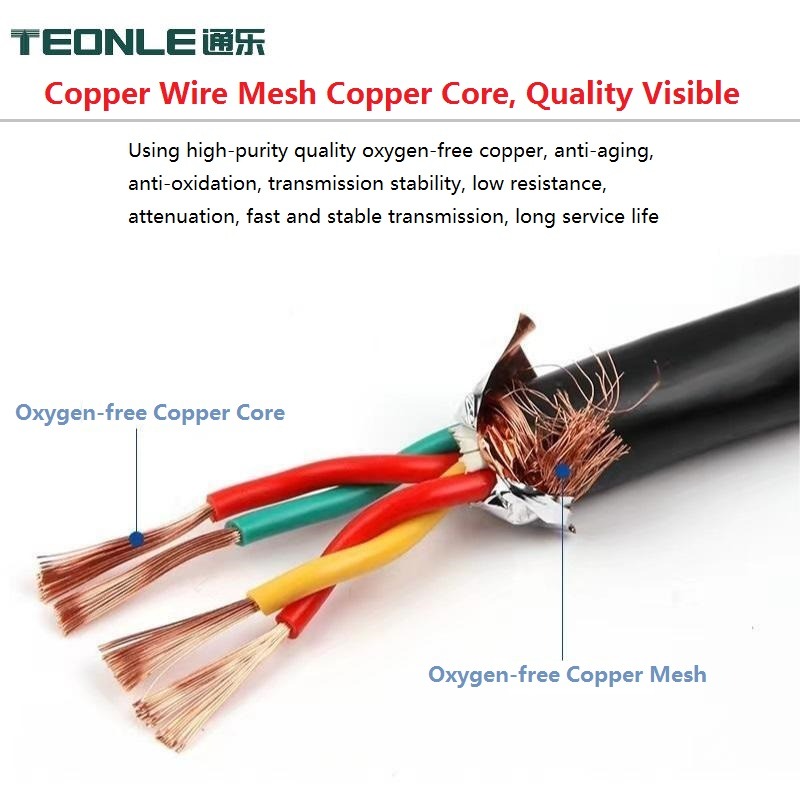

Conductor: multi-strand fine stranded oxygen-free copper wire,
Core stranding mode: two - two pairs and compound stranding
Insulation: Special mixed PVC insulation
Color: Red/yellow/green/black/white/brown/blue/gray/orange/purple (color according to customer requirements)
Lining: PP tape or foil Mylar wrap shielding
Braid: bare copper wire or tinned copper wire braid shield
Jacket: Mixed 70 degree PVC jacket, black or gray, also can be done according to customer demand color
Application standard: JB8734.5-1998GB5023.7-2008
Product Introduction
Product name: RVSP copper core PVC insulation PVC sheathed shielded twisted-pair flexible wire cable signal cable
Rated voltage: 450V/750V
Rated temperature: 70℃
Flame retardant: Passed GB12666.2 flame retardant test
Purpose
Application: Suitable for fixed laying of power, daily electrical appliances, instruments, meters, telecommunication equipment, lighting circuits and automation devices with rated AC voltage of 450/750V and below, flexible wiring for connection, installation and shielding wire for strong interference occasions. Surveillance video signal, access control attendance, anti-theft alarm, building intercom, communication audio, electronic equipment.
Characteristic
PVC has good mechanical properties, excellent electrical insulation properties and excellent chemical stability. Due to the use of new aluminum foil Malaga copper net braided double shield, it can effectively resist electromagnetic interference.
Performance
Detailed parameters:
Bending radius: Service temperature:
Mobile installation: 15* cable outer diameter mobile installation: -10 degrees to +70 degrees
Fixed installation: 6* cable outer diameter Fixed installation: -30 degrees to +70 degrees
Test voltage: Working voltage:
Less than 0.5 square: 2000V Less than 0.75 square: 300/300V
Greater than or equal to 0.5 square: 2500V Greater than or equal to 0.75 square: 300/500V
