Conductor: stranded tinned copper conductor
Insulation: PE
Color: White, yellow, blue, orange four-core star structure
Inner sheath: FRNC
Shielding: aluminum foil wrapped with tinned copper braid

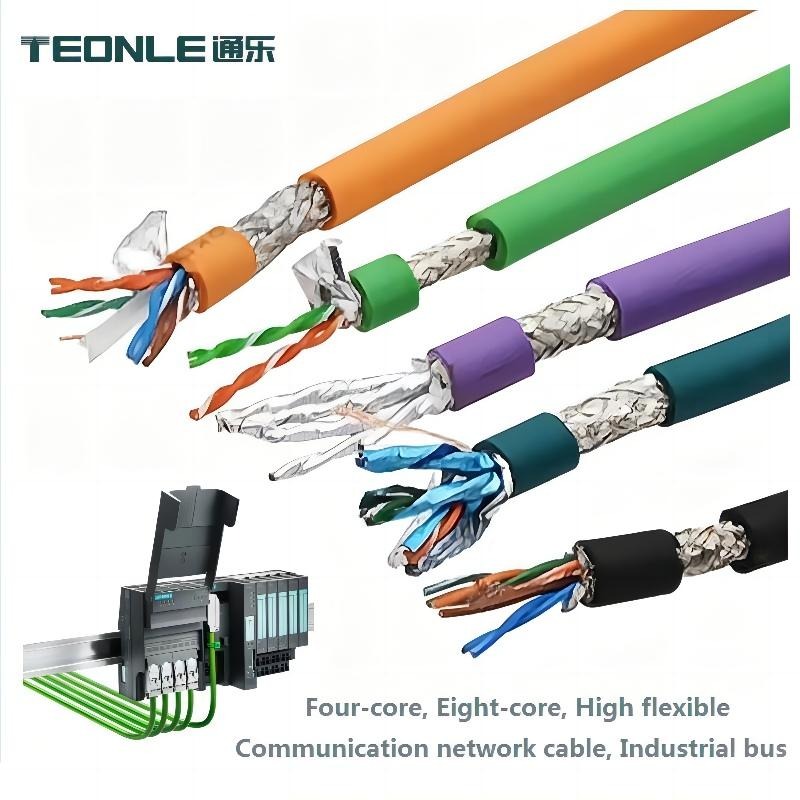

Product Introduction
Conductor: stranded tinned copper conductor
Insulation: PE
Color: White, yellow, blue, orange four-core star structure
Inner sheath: FRNC
Shielding: aluminum foil wrapped with tinned copper braid
Outer sheath: PUR
Color: Green (approximate RAL6018)
Approximate outside diameter :6.5mm
Applied to power towing chains
Purpose
Suitable for machine, tools, equipment, fixtures, electrical appliances and control cabinet wiring system
Suitable for EtherCAT and EtherNet/IP profinet PN PNET applications
Industrial Ethernet cable Cat5e for highly flexible applications for PROFINET applications Type C; 4xAWG22/19 Suitable for PROFINET
Characteristic
PROFINET protocol for a wide range of industrial Ethernet applications, such as machines, equipment, instruments and control cabinet wiring, performance compliance with CAT5e. Suitable for towing chain applications, or for frequent movement. Robot motion control applications can be used for EtherCAT and EtherNet/IP applications
Performance
-- temperature range
Fixed application: PUR:-40℃ to 80℃
Mobile application: PUR:-5 ° C to 70 ° C
-- Test voltage 2000V/min(AC)
-- Characteristic impedance 100±15Ω
-- conductor DC resistance (20℃)
-- Bending radius ≤60Ω/km
