-- temperature range
Fixed application: PUR:-40℃ to 80℃
Mobile application: PUR:-5 ° C to 70 ° C
-- Test voltage 2000V/min(AC)
-- Characteristic impedance 100±15Ω
-- conductor DC resistance (20℃)

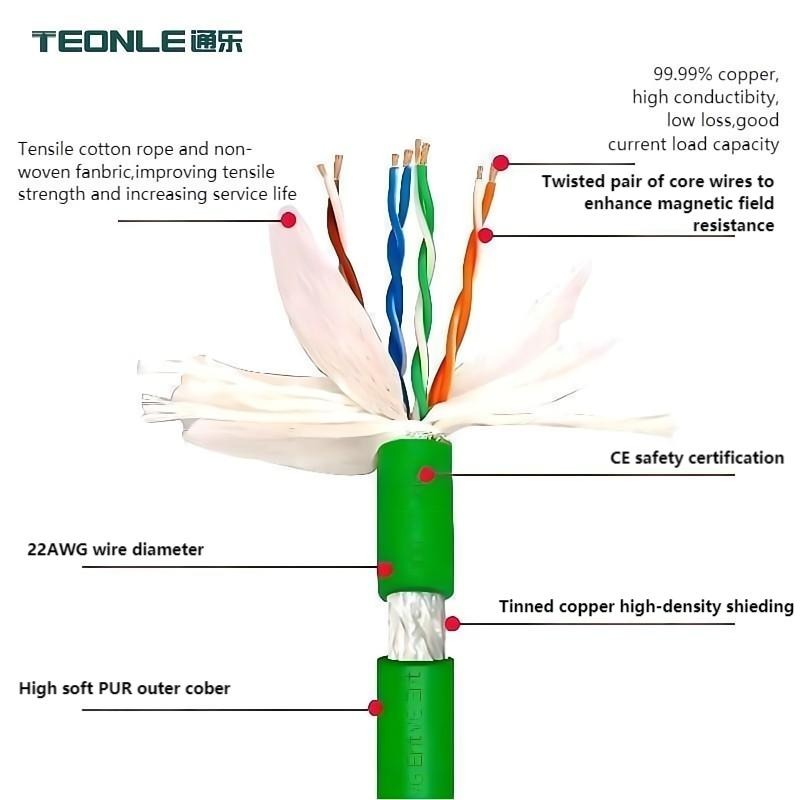

Product Introduction
Conductor: stranded tinned copper conductor
Insulation: PE
Color: star structure
Inner sheath: FRNC
Shielding: aluminum foil wrapped with tinned copper braid
Outer sheath: PUR
Color: Green (approximate RAL6018)
Purpose
Suitable for EtherCAT and EtherNet/IP profinet PN PNET applications
Industrial Ethernet cable Cat5e, 6e for PROFINET application type C; 4xAWG22/19 Suitable for PROFINET
Characteristic
-- temperature range
Fixed application: PUR:-40℃ to 80℃
Mobile application: PUR:-5 ° C to 70 ° C
-- Test voltage 2000V/min(AC)
-- Characteristic impedance 100±15Ω
-- conductor DC resistance (20℃)
Performance
-- temperature range
Fixed application: PUR:-40℃ to 80℃
Mobile application: PUR:-5 ° C to 70 ° C
-- Test voltage 2000V/min(AC)
-- Characteristic impedance 100±15Ω
-- conductor DC resistance (20℃)
