Product Introduction

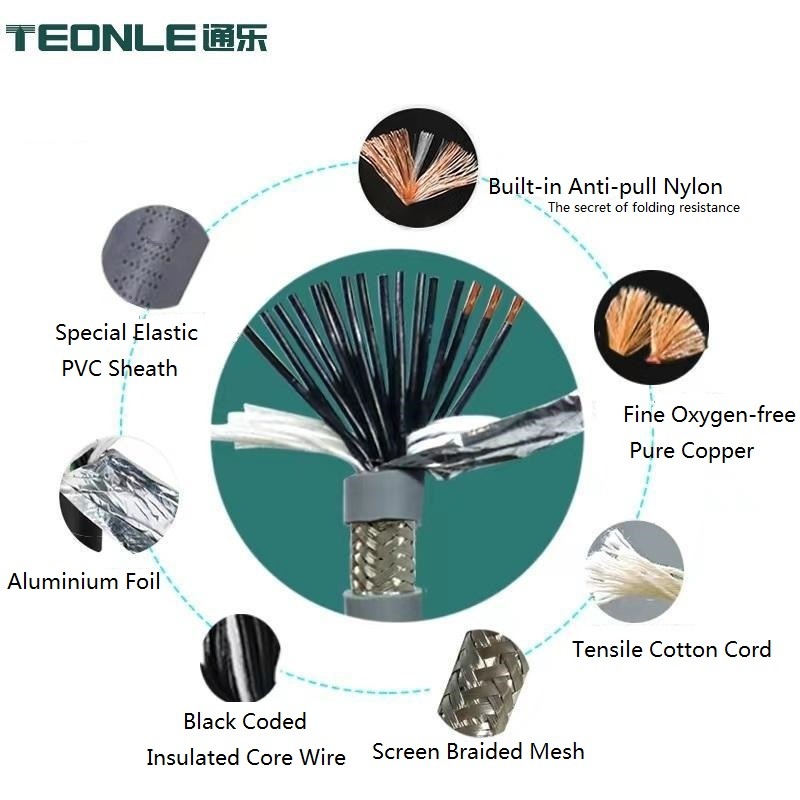

Conductor: anaerobic bare copper wire multi-strand fine stranded, according to VDE 0295/CLASS 6 conductor standard;

Cable insulation: high quality and high mechanical properties of mixed elastic nitrile material;

Core structure: flexible anti-torsional structure design with short pitch optimization or group gap filling design;

Inner sheath: low viscosity strong extrusion type inner sheath (optional);

Shielding design: high density shielding layer of tinned copper wire braided design cable;

Sheath design: specially modified elastomer butadiene material design;

Purpose

TRVVP shielded tow chain cable has excellent performance of high softness, bending resistance and electromagnetic interference resistance. It is widely used as power, control or data signal connection cable under the tow chain system. For complex and harsh working situations and environments, cable materials need to be selected to fit the working conditions, so as to ensure that the cable is applied to the tow chain system under different working conditions.

Characteristic

1, can be customized color core or coding core according to customer requirements.

2, the use of special nitrile composite material, reduce the cable diameter, reduce the installation space requirements.

3, the design cycle bending life of 6 million to 20 million times.

4, teleportation speed: 2m - 4m/s.

5, with flexible, mobile, wear resistance, oil resistance, bending resistance, distortion resistance, folding resistance

Performance

Specifications: 0.12 to 2.5mm2

Test voltage: 2500V;

Temperature range: -10~+70℃ (mobile installation);

Bending radius: 7.5xD (mobile installation);
