Product Introduction

Conductor: multi strand fine stranded oxygen free copper wire, conforming to VDE0295CLASS 5 standard

Insulation: Special mixed PVC insulation

Color: Below 5 cores brown, black, light blue, black or brown, yellow-green >= 0.5mm black number white number number, above 5 cores with yellow-green ground cable (yellow-green optional)

Jacket: Special modified oil resistant PVC jacket black (RAL9005) Grey (RAL7001)

Purpose

Oil-resistant cable is used for industrial automation, complete sets of mechanical and electrical equipment, machine tools and other mechanical equipment, logistics transmission system, production line and other control systems in the electrical connection, especially suitable for industrial environment, dry goods wet indoor fixed installation, can also be used for non-continuous reciprocating motion without forced traction mobile installation. If the cable is to be installed in the open air, protect it against ultraviolet rays. The cable has good flexibility. The sheath is made of oil-resistant nitrile material, so that the cable has good oil resistance. The braided shielding of tinned copper wire makes the cable have strong ability to resist external electromagnetic interference and ensure the stability of the cable system.

Characteristic

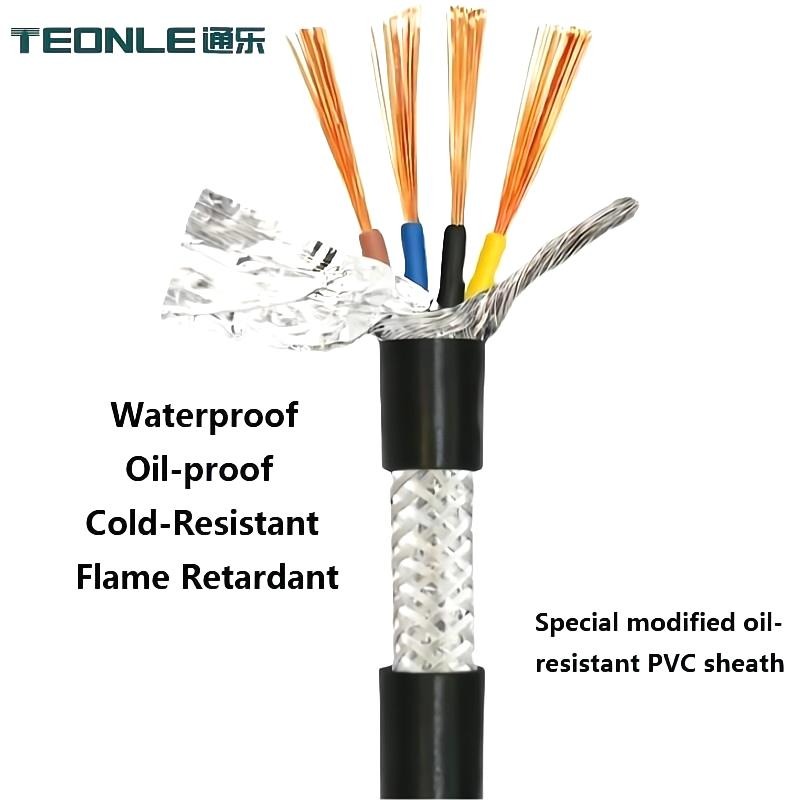

Product features: waterproof, oil proof, cold resistance, flame retardant, conventional working temperature of 40 degrees bending life is longer than the ordinary installation line, but not used as a drag chain cable. Application standard: IEC227-7 195 GB5023.7-1997 oil resistance by ASTM standard GB/T2951.5.

Performance

Rated voltage: 300/500V

Test voltage: 2500V

Operating temperature range: Fixed installation: -40℃ to +70℃ Mobile installation: -5℃ to +70℃

Minimum bending radius: Fixed installation: 4x cable diameter Mobile installation: 15x cable diameter

Corresponding: Up to 16AWG when UL specification, 300/300V voltage 80℃ in actual production model RVV (oil resistant)
