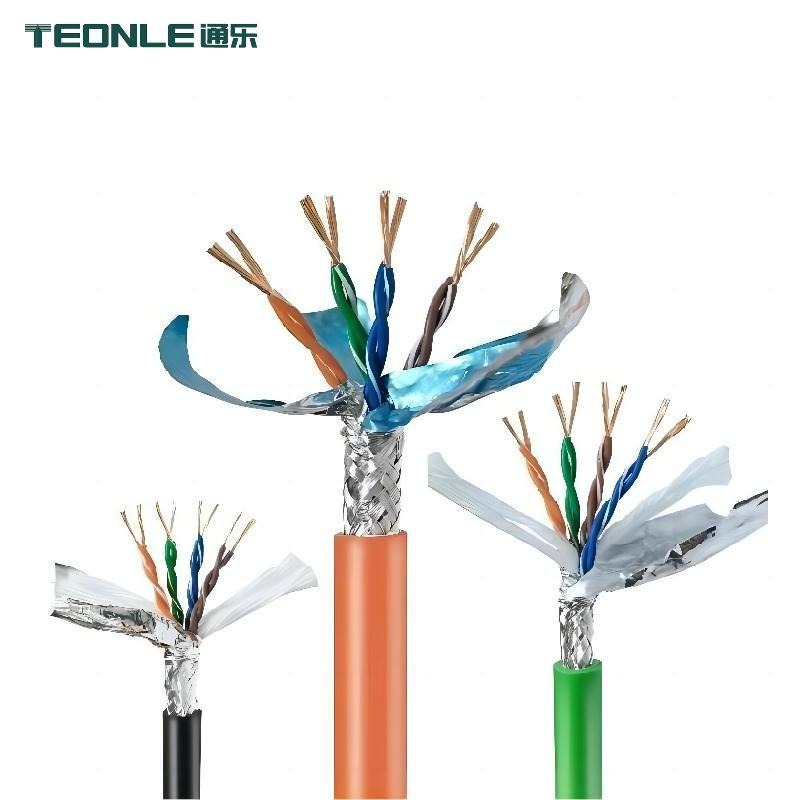

Conductor: stranded tinned copper conductor
Insulation: PE
Color: star structure
Inner sheath: FRNC
Shielding: aluminum foil wrapped with tinned copper braid
Outer sheath: PUR
Color: Green (approximate RAL6018)
Product Introduction
Conductor: stranded tinned copper conductor
Insulation: PE
Color: star structure
Inner sheath: FRNC
Shielding: aluminum foil wrapped with tinned copper braid
Outer sheath: PUR
Color: Green (approximate RAL6018)
Purpose
Fixed application: PUR:-40℃ to 80℃
Mobile application: PUR:-5 ° C to 70 ° C
-- Test voltage 2000V/min(AC)
-- Characteristic impedance 100±15Ω
-- conductor DC resistance (20℃)
Characteristic
The PROFINET protocol is used in a wide range of industrial Ethernet applications, such as wiring machines, equipment, instruments and control cabinets. The performance conforms to CAT5e.6e for towed chain applications, or for frequent movement applications. Robot motion control applications can be used for EtherCAT and EtherNet/IP applications
Performance
Conductor: stranded tinned copper conductor
Insulation: PE
Color: star structure
Inner sheath: FRNC
Shielding: aluminum foil wrapped with tinned copper braid
Outer sheath: PUR
Color: Green (approximate RAL6018)
