Product Introduction

Detailed parameters:

Rated voltage: 300/500V

Test voltage: 2500V

Operating temperature range: Fixed installation: -40℃ to +70℃

Mobile installation: -5℃ to +70℃

Minimum bend radius: Fixed installation: 4x cable diameter

Mobile installation: 15x cable OD

Purpose

Suitable for dry or wet indoor, no strong stress release or forced guidance under occasional movement

As well as the occasional bending movement in industrial environments, such as machine tools, carpentry

Grinder, etc.

Product features:

Waterproof, oil proof, cold resistance, flame retardant, conventional operating temperature of 40 degrees

The bending life is longer than that of ordinary mounting wire, but it is not used as a towing cable.

Characteristic

Detailed parameters:

Rated voltage: 300/500V

Test voltage: 2500V

Operating temperature range: Fixed installation: -40℃ to +70℃

Mobile installation: -5℃ to +70℃

Minimum bend radius: Fixed installation: 4x cable diameter

Mobile installation: 15x cable OD

Performance

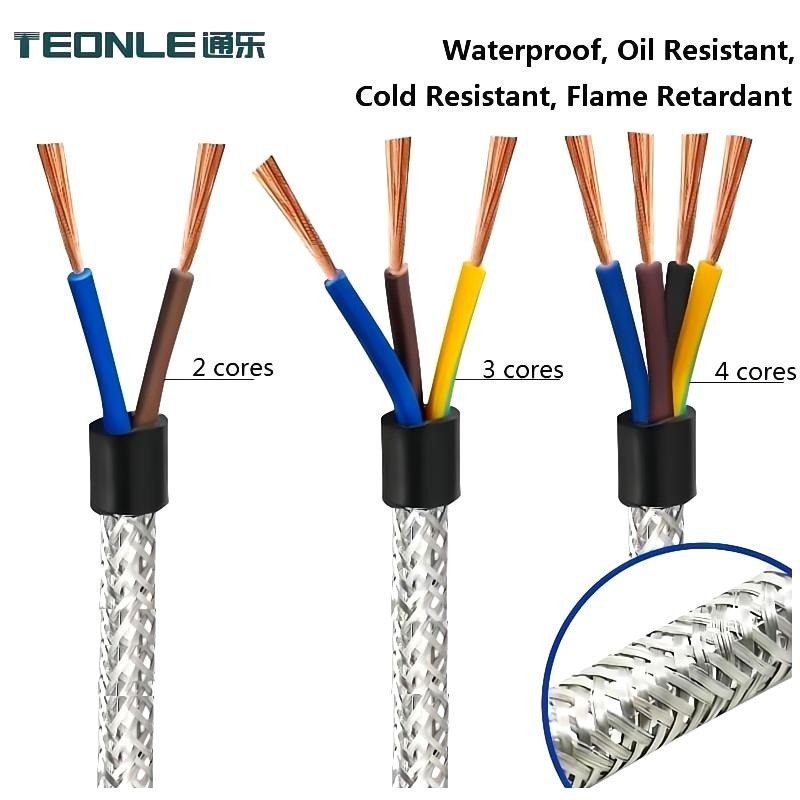

Cable structure:

Conductor: multi strand fine stranded oxygen free copper wire, conforming to VDE0295CLASS 5 standard

Insulation: Special mixed PVC insulation

Color: 5 cores below brown, black, light blue, black or brown, yellow green

≥0.5mm black number white number number, more than 5 core with yellow and green ground cable

(Optional in yellow and green)

Shielding: RVVYP (Copper mesh shielding or tinned copper mesh shielding optional)

Sheath: Specially modified oil resistant PVC sheath

Black (RAL9005)

Grey (RAL7001)
